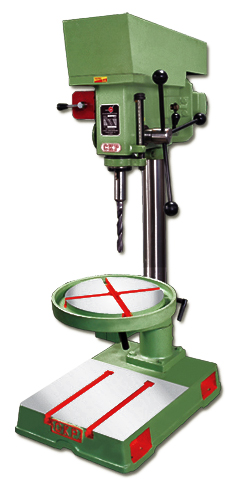

Piller Drilling P4 / 40 Send Enquiry

BENCH DRILLING MACHINES - BDM / HD



Specification - All Dimensions are in"mm"

Specification BDM/HD PDM/HD
Drilling Capacity in Steel 20 20
Morse taper in spindle MT 2 MT 2
Spindle travels 130 130
Vertical adjustment of Spindle head 425 425
Pillar diameter Ø 80 Ø 80
Distance between center of spindle and Column front 200 200
Max. Distance between spindle and table 340 340
Max. Distance between spindle and base 700 1200
Table working Surface Ø 300 Ø 300
Base Working Surface 385 X 375 385 X 375
No. of Spindle Speeds 5 5
Range of spindle speed(rpm) 375-700-1170-1900-3220 5
Feeds Hand Hand
Power of Spindle drive motor 0.75kw/1HP,1440 rpm,50 Cycles
400/440 Volt, AC, 3Phase
Space occupied (H X W X L) 1350 X 460 X 780 1575 X 460 X 780
Weight 220 Kg 240 Kg.
The machine will be supplied with motor and rotary switch.

Extra Equipments

  • Drill Chuck with Arbor & Key
  • Reduction Sleeves
  • Coolant Pump
  • Machine vice
  • Light Fittings
  • D.O.L Strater
  • Machine avail following with 960 rpm motor - 340, 560, 900 and 1394 2880 rpm motor - 965, 1645, 2690 and 4175

NOTE :

  • The vertical adjustment of spindle head and table are manual.
  • As per our usual standard supply, the round table provided with coolant channel.
  • The Machine also available with 2HP 1440 rpm motor ON CUSTOMERS request with extra cost.
  • As per usual standard supply, the machine will be provided with ON / OFF Rotary type switch only.
  • The machine can be supplied as Gang drilling version also with number of drilling heads over a common table. Specification can be furnished on customer's request
  • The above specification data are approximate only. Due to constant improvement, design and specification are subject to change without notice.
  • All dimensions and weights are approximate only. We reserve the weights to modify the illustrations and specifications without notice.
