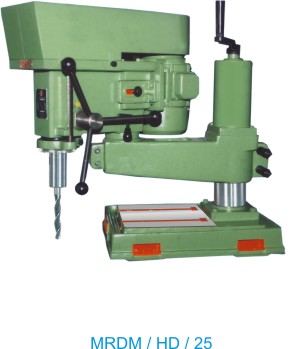

Mini Radial Drilling Machine MRDM/HD/25

Specification - All Dimensions are in"mm"

Drilling Capacity in Steel 25mm
Morse taper in spindle MT 3
Spindle travels 150mm
Feeds Hand
No of spindle speeds 5
Range of spindle speeds(rpm) 375-700-1170-1900-3220
Power of spindle drive motor 2HP, 1440 RPM, 440v, AC 3PH, 50Hz
Diameter of the pillar DIA 100mm
Drilling radius Max-Min 600mm, 250mm
Distance Between
(A) Spindle Nose & Base Max-Min 242mm, 32mm
(B) Pillar front to spindle Max-Min 550mm, 242mm
(C) Max. between spindle & Base 242mm
Vertical Adjusment of the spindle head 205mm
Base working surface 290*300
Base no of T slot 2
Base over all length *B 540*400mm
Space Occupied L X B X H 36" X 26" X 32"
Net Weight 190KG

NOTE :

  • 1. 2HP, 3-Phase 1440 rpm Motor - Spindle rpm's are 390 rpm and 1160 rpm
  • 2. 2HP, 3-Phase 1440 rpm Motor with Spindle Speeds are 110-142-210-310-450-600-852-1260-1860-2700
