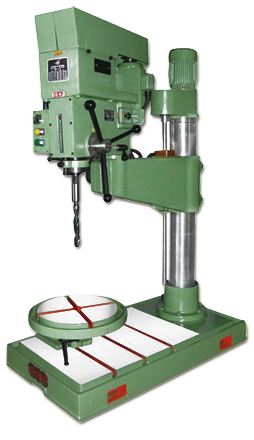

RADIAL DRILLING MACHINES - RDH/325/GT

Specification - All Dimensions are in"mm"

Drilling Capacity in Steel	25
Tapping Capacity in Steel	M12
Morse Taper in Spindle	MT3
Spindle Travels	140
Feed	Hand
No. of Spindle Speeds	10
Range of Spindle Speeds (rpm)	100-142-210-310-450/600-852-1260-1860-2700
Power of Spindle Drive Motor	1 HP 1440 rpm/440v AC, 3Ph.50Hz
Diameter of Pillar (Mat: CI)	Ø 150
Drilling Radius-Max /Min	725mm/230mm
Distance between
Spindle Nose & Table -Max/Mini	610mm/60mm
Spindle Nose & Base-Max/Mini	865mm/320mm
Pillar front to Spindle-Max/Mini	725mm/230mm
Base to Table	260mm
Table Working surface	Ø 355
Base Working surface	760 x 530
Base No. of ' T ' - Slots	3Nos
Space Occupied (length*width*height)	1250 x 760 x 1575(49" x 30" x 62")
Net weight	650 Kg

Extra Equipments at extra cost

• Drill Chuck
• Light Fittings
• Coolant Pump

• Reduction Sleeves
• Machine vice
• D.O.L Strater

Optional Spindle Speeds: at extra cost

With 1 HP 960 rpm motor - 65-95-140-205-300-390-570-840-1230-1800

With 1 HP 720 /1440 rpm motor - 50-71-105-155-225-300-426-630-930-1350/

                                                      100-142-210-310-450-600-852-1260-1860-2700

Main Features: :

• The robust and streamlined construction enables if to withstand and absorb heavy cutting forces.
• Drilling head is mounted over a sturdy arm attached to the pillar.
• Both the arm and the drilling head can be swiveled and clamped to any desired position. The arm can be raised by means of rack and pinion mechanism actuated by a hand lever, to any height with in its capacity.
• Drive is transmitted from motor to spindle through five stepped V-groove pulley and V-belt.
• Reduction gear unit mounted at the top of the machine head provides ten wide range of spindle speeds.
• TReduction gear unit is operated by means of a hand lever, provided within the easy reach of the operator.
• Circular table at the base mounted over an arm which can be swiveled around to any desired position and can be fixed in anyone of the T-slots or can be removed so that the whole base can be used.

NOTE :

• The above specifications are approximate only. Due to constant improvement, design the specification are subject to change without notice.
